EdgePCBA

Metal PCB

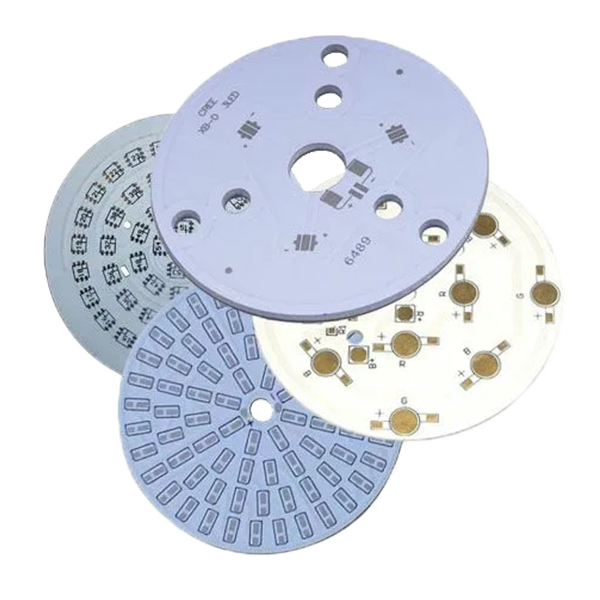

Metal PCBs, commonly known as Metal Core PCBs (MCPCBs), are printed circuit boards that use a metal substrate—typically aluminum, copper, or steel alloy—instead of the traditional FR4 material. These boards are specifically designed to improve heat dissipation and mechanical strength, making them ideal for high-power and high-thermal-load applications.

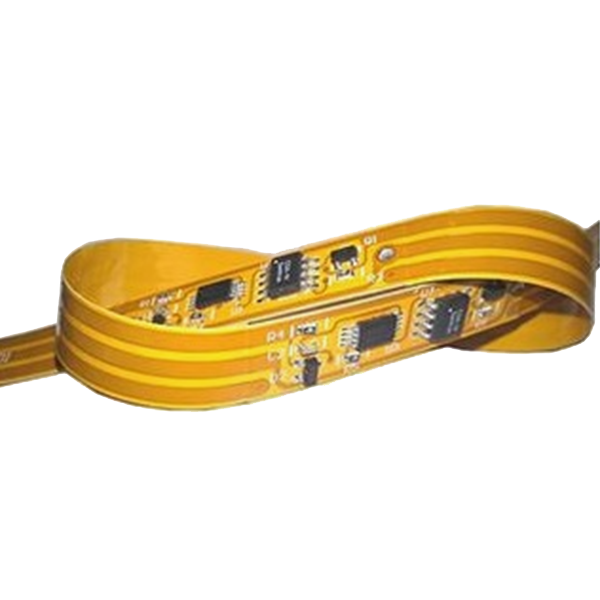

Flexible PCB

Flexible PCB

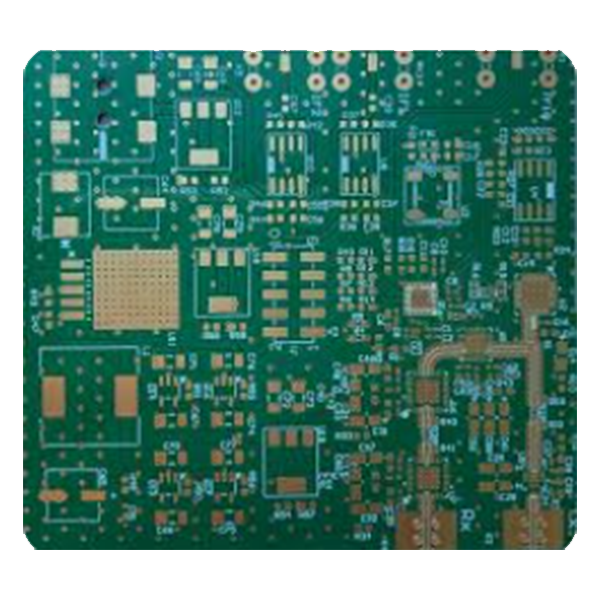

HDI PCB

HDI PCB

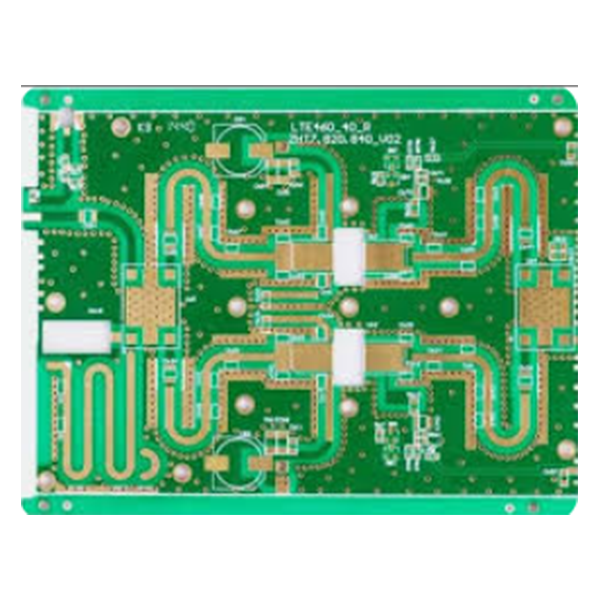

High Frequency PCB

High Frequency PCB

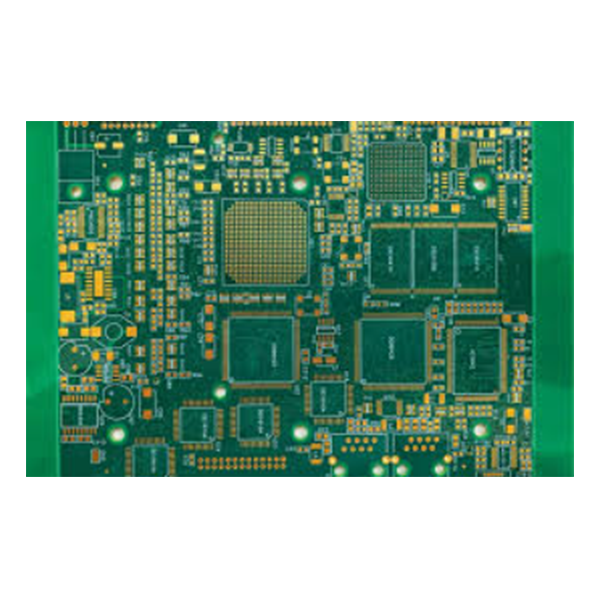

High Speed PCB

High Speed PCB

Rigid-flex PCB

Rigid-flex PCB

Metal PCB

Metal PCB

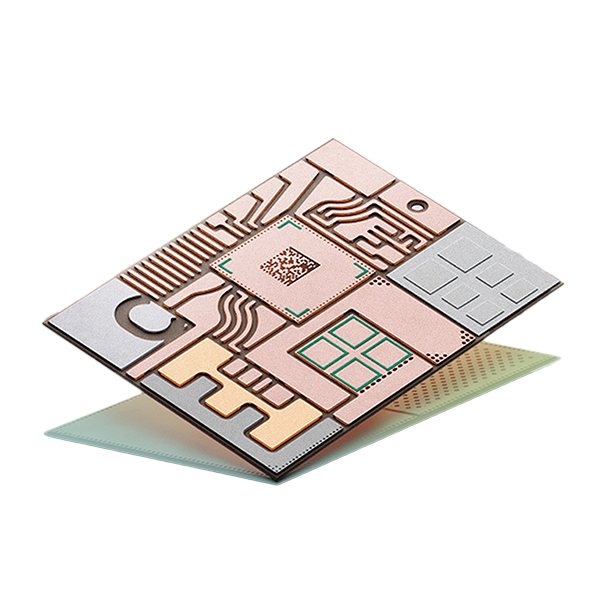

Ceramic PCB

Ceramic PCB

Metal PCB Manufacturing Services

Metal PCBs or Metal Core PCBs (MCPCBs) are specially designed circuit boards that use a metal base layer—typically aluminum, copper, or a combination—to provide enhanced heat dissipation and mechanical strength. These boards are widely used in high-power, thermally demanding applications such as LED lighting, power supplies, automotive electronics, and industrial equipment.

  • Customized Design: Supporting 1-12 layers of metal substrates
  • Core Manufacturing: First-class technical team with mature product lines
  • Quality Control: Thermal conductivity, insulation, pressure resistance testing
  • Rapid Prototyping: 2-7 days for prototype delivery
  • Cost Optimization: Cost-effective aluminum substrate solutions
  • Global Certifications: ISO 9001, IATF 16949, UL certified
  • DFM Analysis: Design for Manufacturing support provided

Why Choose Metal PCBs?

Exceptional thermal performance and mechanical strength, making them the go-to solution for high-power and high-heat electronic applications.

  • Excellent Heat Dissipation: The metal core (typically aluminum or copper) conducts heat away from critical components much faster than traditional FR4 PCBs, reducing the risk of overheating and ensuring longer component life.
  • Enhanced Mechanical Strength: Metal substrates provide better structural support than standard fiberglass boards, making them more resistant to bending, vibration, and mechanical stress—ideal for harsh or industrial environments.
  • High Reliability in Extreme Conditions: Metal PCBs perform consistently in high-temperature, high-current, and high-vibration environments, making them suitable for automotive, aerospace, and power electronics applications.
  • Superior Power Handling: With excellent thermal conductivity and heat spreading capabilities, metal PCBs can handle higher power densities without performance degradation.
  • Compact and Lightweight Design: By improving thermal efficiency, metal PCBs may eliminate the need for bulky heat sinks or fans, allowing for more compact, lightweight product designs.
  • Cost-Effective for High-Power Applications: Especially in LED lighting, using aluminum PCBs can reduce the overall thermal management cost by simplifying design and lowering cooling requirements.
Get A Quote

ASSEMBLY CAPABILITIES

Assembly Capabilities for PCBs

Stencil Size Range

29inch*29inch

SMT

Position accuracy: 25um
Components size:0201--150mm
Max.PCB Size:680mm*500mm
MinPCB size:50mm*50mm
Min.PCB Thickness:0.3mm-- 6mm
Min.IC Pitch: 0.30mm

Wave-Solder

Max.PCB width:450mm Min.PCB width:no Limited Component height: Top 120mm/Bottom 15mm

Min.BGA pitch

0.008"

Max.BGA Size

74mm x74mm

BGA Ball Pitch

1.00mm(Min);3.00mm(Max)

BGA Ball Diameter

0.40mm(Min);1.00mm(Max)

QFP Lead Pitch

0.38mm(Min);2.54mm(Max)

For further discussion about PCB Assembly, please contact us.

MATERIALS

Diversified PCB Assembly Materials You Can Choose

  • FR-4
  • Glass epoxy
  • FR4 High Tg
  • Rohs compliant
  • Aluminum
  • Rogers
  • FR-4
  • Glass epoxy
  • FR4 High Tg
  • Rohs compliant
  • Aluminum
  • Rogers
Get A Quote
our pcbs

LAYERS

Customizable PCB Boards Up to 32 Layers

Get A Quote
our pcbs

Assemble Your PCB Now!

Don't hesitate to reach out if you require any help or have specific customization requirements that we can cater to.
