EdgePCBA

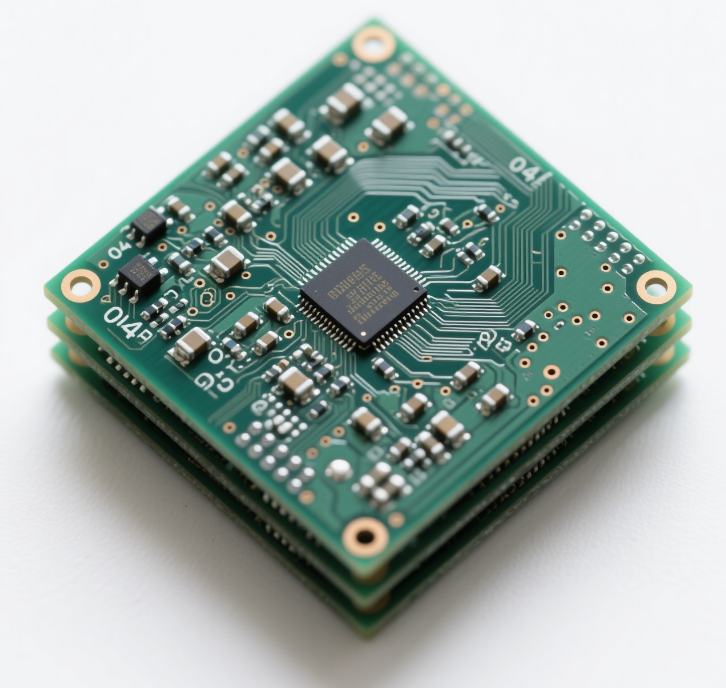

High Speed PCB

EdgePCBA provides high speed PCB manufacturing services. High Speed PCBs are specialized circuit boards designed to support fast signal transmission, typically in the range of hundreds of MHz to several GHz. These boards are engineered with precise layout techniques and materials to preserve signal integrity, reduce noise, and ensure reliable performance in high-frequency or high-speed digital applications.

Flexible PCB

Flexible PCB

HDI PCB

HDI PCB

High Frequency PCB

High Frequency PCB

High Speed PCB

High Speed PCB

Rigid-flex PCB

Rigid-flex PCB

Metal PCB

Metal PCB

Ceramic PCB

Ceramic PCB

High Speed PCB Manufacturing Services

High-speed PCBs are critical in modern electronic systems where fast signal transmission, high data rates, and reliable performance are essential. At EdgePCBA, we specialize in high-speed PCB manufacturing to support industries such as data communication, networking, AI computing, automotive electronics, and more.

  • Up to 30+ layer designs supported
  • High-frequency materials (Rogers, Teflon, Isola)
  • 10Gbps+signal integrity solutions
  • Precision processes (laser drilling, blind/buried vias)
  • Fast delivery (24hr prototype, 5-7 day production)
  • Certified quality(ISO 9001, UL, RoHS)

Why Choose High-Speed PCBs?

Specifically engineered to handle fast signal transmissions—typically in the range of hundreds of MHz to several GHz—without compromising signal integrity. They are essential for modern electronics that require rapid data processing, low latency, and reliable performance in high-frequency environments.

  • Maintain Signal Integrity at High Data Rates: High-speed PCBs are designed with precise impedance control, low-loss materials, and optimized layer stackups to minimize signal reflection, crosstalk, and timing errors, ensuring stable and accurate signal transmission.
  • Support High-Frequency Applications: These PCBs enable reliable operation of high-speed interfaces such as USB 3.x, HDMI, PCIe, Ethernet, SATA, and DDR4/5, which are critical in data centers, telecom systems, and consumer electronics.
  • Use of Advanced Materials: High-speed PCBs use materials like Rogers, Isola, and Megtron that offer low dielectric constant (Dk) and low dissipation factor (Df)—essential for minimizing signal loss and distortion at GHz-level speeds.
  • Better EMI/RFI Performance: Careful signal routing, ground plane design, and shielded layers in high-speed PCBs reduce electromagnetic interference (EMI) and radio-frequency interference (RFI), supporting regulatory compliance and reliable function.
  • Ideal for Compact, High-Density Designs: As devices become smaller and more powerful, high-speed PCBs allow for densely packed components and multilayer structures while maintaining performance, enabling miniaturized yet high-performing electronic products.
Get A Quote

ASSEMBLY CAPABILITIES

Assembly Capabilities for PCBs

Stencil Size Range

29inch*29inch

SMT

Position accuracy: 25um
Components size:0201--150mm
Max.PCB Size:680mm*500mm
MinPCB size:50mm*50mm
Min.PCB Thickness:0.3mm-- 6mm
Min.IC Pitch: 0.30mm

Wave-Solder

Max.PCB width:450mm Min.PCB width:no Limited Component height: Top 120mm/Bottom 15mm

Min.BGA pitch

0.008"

Max.BGA Size

74mm x74mm

BGA Ball Pitch

1.00mm(Min);3.00mm(Max)

BGA Ball Diameter

0.40mm(Min);1.00mm(Max)

QFP Lead Pitch

0.38mm(Min);2.54mm(Max)

For further discussion about PCB Assembly, please contact us.

MATERIALS

Diversified PCB Assembly Materials You Can Choose

  • FR-4
  • Glass epoxy
  • FR4 High Tg
  • Rohs compliant
  • Aluminum
  • Rogers
  • FR-4
  • Glass epoxy
  • FR4 High Tg
  • Rohs compliant
  • Aluminum
  • Rogers
Get A Quote
our pcbs

LAYERS

Customizable PCB Boards Up to 32 Layers

Get A Quote
our pcbs

Assemble Your PCB Now!

Don't hesitate to reach out if you require any help or have specific customization requirements that we can cater to.
